- Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function MM03
Sealey ToolsTouchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function MM03
RRP £47.94£44.25(£36.88 ex. VAT)Save: £3.69
In Stock
Product Description
Product Reviews

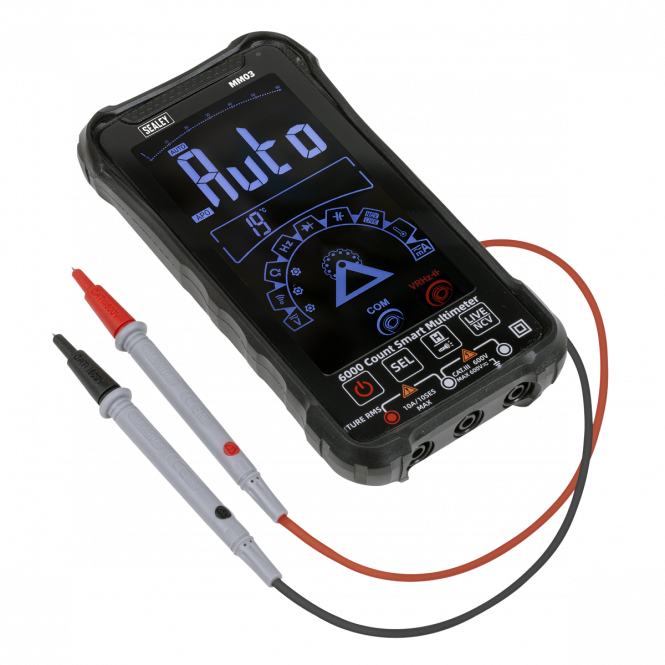

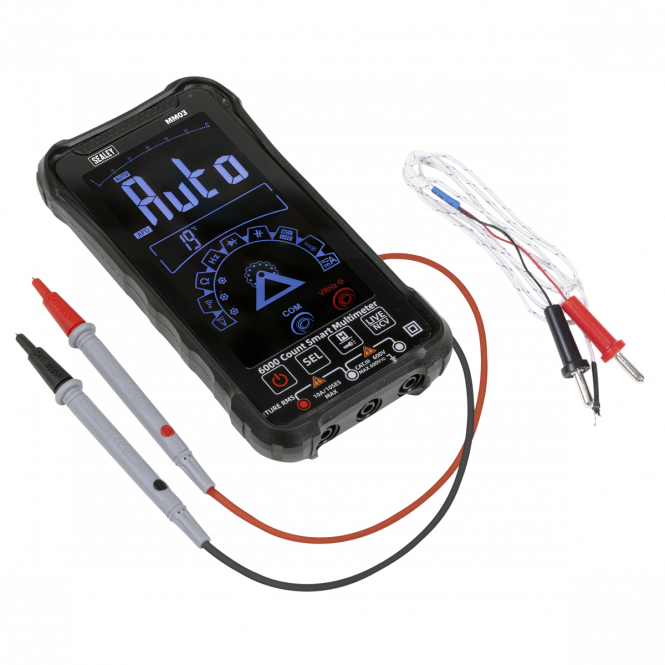

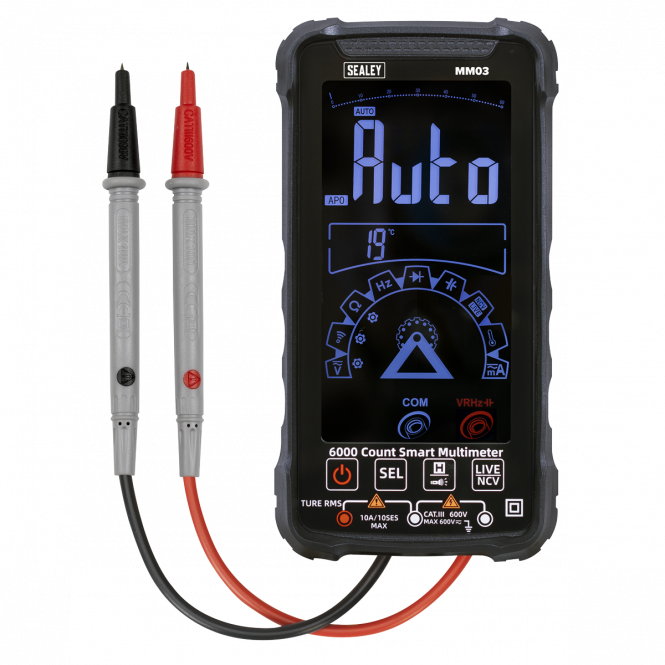

Intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity. Features temperature measurement capability, data-hold and auto-power-off function. Non-contact voltage detection (NCVD) enables one-handed use. 6000 Count high precision measurements. Live test feature can test for live feeds with a single probe. Large LCD touchscreen and LED worklight. Rechargeable, supplied with Type-C USB charging cable. Includes probes and thermocouple probe. High-impact case. Supplied in a storage case. Conforms to EN 61010-2 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
Specifications
- Model No MM03
- Brand: Sealey
- Nett Weight: 0.317kg
- DC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
- AC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
- DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
- AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
- Resistance (Accuracy): Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
- Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
- Capacitance (Accuracy): Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
- Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
- Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
- Auto Range: YES
- Auto Scan: V/R/CONT
- Duty Cycle: NO
- Continuity Audible: YES
- Diode Test: YES
- Backlit/Torch: YES
- Transistor Test: NO
- Hi-Impact Rubber Case: YES
- Digits x Height: 4 x 23mm
- Low Battery Indicator: YES
- Battery: Rechargeable 3.7V Li-ion
- Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test
- Size: 158 x 82 x 23mm
- Nett Weight: 0.317kg
- Conformity: EN 61010-2
Intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity. Features temperature measurement capability, data-hold and auto-power-off function. Non-contact voltage detection (NCVD) enables one-handed use. 6000 Count high precision measurements. Live test feature can test for live feeds with a single probe. Large LCD touchscreen and LED worklight. Rechargeable, supplied with Type-C USB charging cable. Includes probes and thermocouple probe. High-impact case. Supplied in a storage case. Conforms to EN 61010-2 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
Specifications
- Model No MM03
- Brand: Sealey
- Nett Weight: 0.317kg
- DC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
- AC Voltage (Accuracy): Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
- DC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
- AC Current (Accuracy): Range: 6/10A, Resolution: 0.001/0.01A, Accuracy: =-(3% +10 digits)
- Resistance (Accuracy): Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
- Resistance: Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy: =-(2% +5 digits)
- Capacitance (Accuracy): Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
- Frequency (Accuracy): Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution: 0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
- Temperature (Accuracy): Range: -200°C to 1200°C -328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
- Auto Range: YES
- Auto Scan: V/R/CONT
- Duty Cycle: NO
- Continuity Audible: YES
- Diode Test: YES
- Backlit/Torch: YES
- Transistor Test: NO
- Hi-Impact Rubber Case: YES
- Digits x Height: 4 x 23mm
- Low Battery Indicator: YES
- Battery: Rechargeable 3.7V Li-ion
- Information: Data-Hold, Auto-Power-Off, Integral Stand & Live Test
- Size: 158 x 82 x 23mm
- Nett Weight: 0.317kg
- Conformity: EN 61010-2
