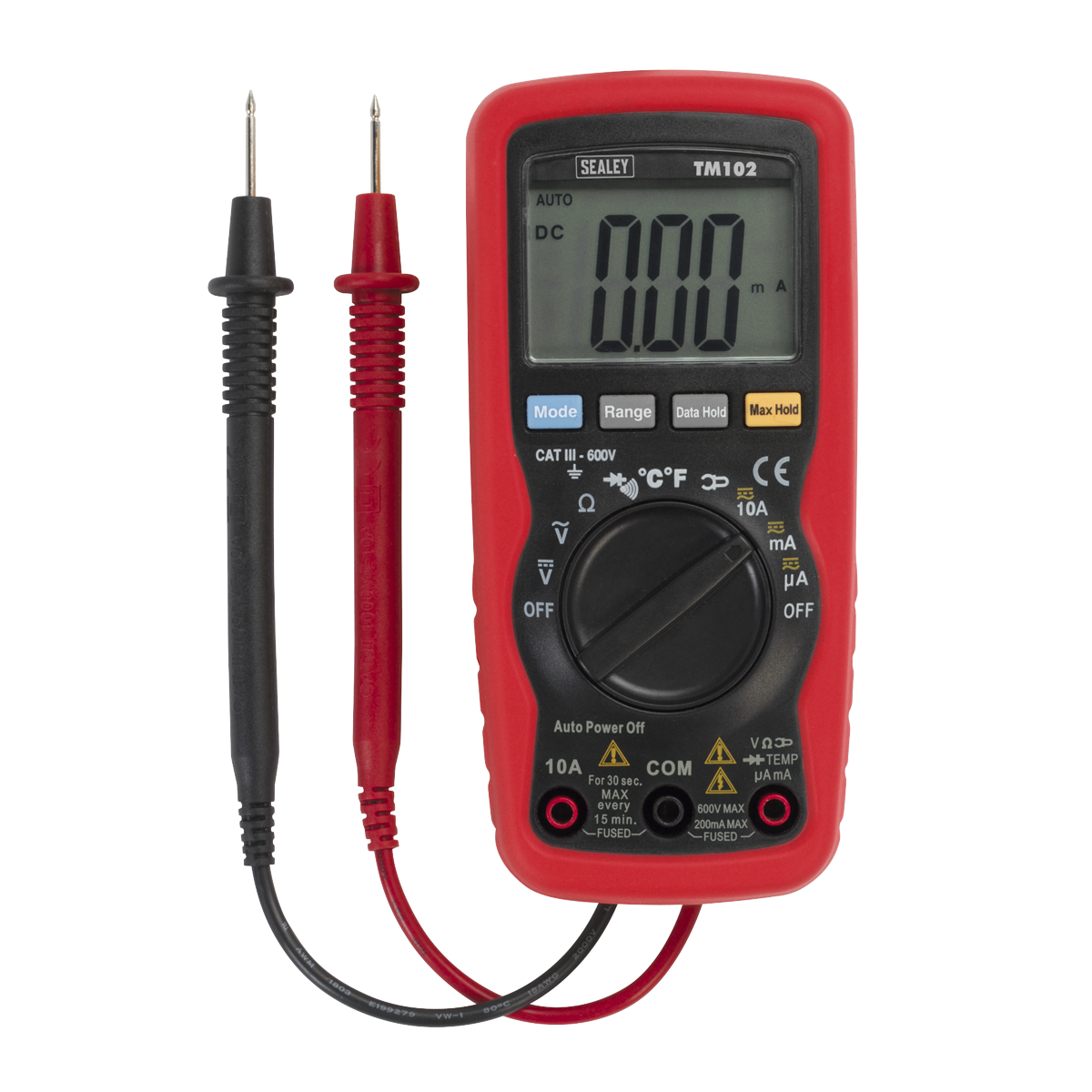

Sealey ToolsProfessional Auto-Ranging Digital Multimeter - 8-Function TM102

High precision auto-ranging multimeter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, max./data hold and auto-power-off function. Double moulded housing with soft grip case and large display for ease of use. Practical probe, lead storage and integral upright stand for use on the workbench. Supplied in zipped pouch with carry strap. Measures: • AC and DC Voltage • AC and DC Current • Resistance • Diode Test • Audible Continuity • Temperature

Specifications

• Model No TM102
• Brand: Sealey
• Nett Weight: 255g
• AC Voltage (Accuracy): 200mV (±1.5%), 2V (±1.2%), 20V, 200V (±1.5%), 600V, 1000V (±2%)
• DC Voltage (Accuracy): 0-200mV (±0.5%), 2V, 20V, 200V (±1.2%), 600V, 1000V (±1.5%)
• AC Current (Accuracy): 200µA (±1.5%), 2000µA, 20mA, 200mA (±1.8%), 10A (±3%)
• DC Current (Accuracy): 200µa (±1%), 2000µa, 20mA, 200mA (±1.5%), 10A (±2.5%)
• Resistance (Accuracy): 0-200Ω (±1.2%), 2kΩ (±1%), 20kΩ, 200kΩ, 2MΩ (±1.2%), 20MΩ (±2%)
• Capacitance (Accuracy): No
• Temperature (Accuracy): -50ºC to 1000ºC (±3%), -58 to 1832ºF (±3%)
• Frequency (Accuracy): No
• Duty Cycle: No
• Continuity Audible: Yes
• Diode Test: Yes
• Transistor Test: No
• Hi-Impact Rubber Case: Yes
• Digits x Height: 3.5 x 14mm
• Low Battery Indicator: Yes
• Battery (Supplied): 1 x 9V
• Information: Data-Hold, Auto-Power-Off, Non Contact Voltage Detection
• Size (L x W x D): 150 x 70 x 48mm
• Weight: 255g
• Conformity: EN 61010-1
