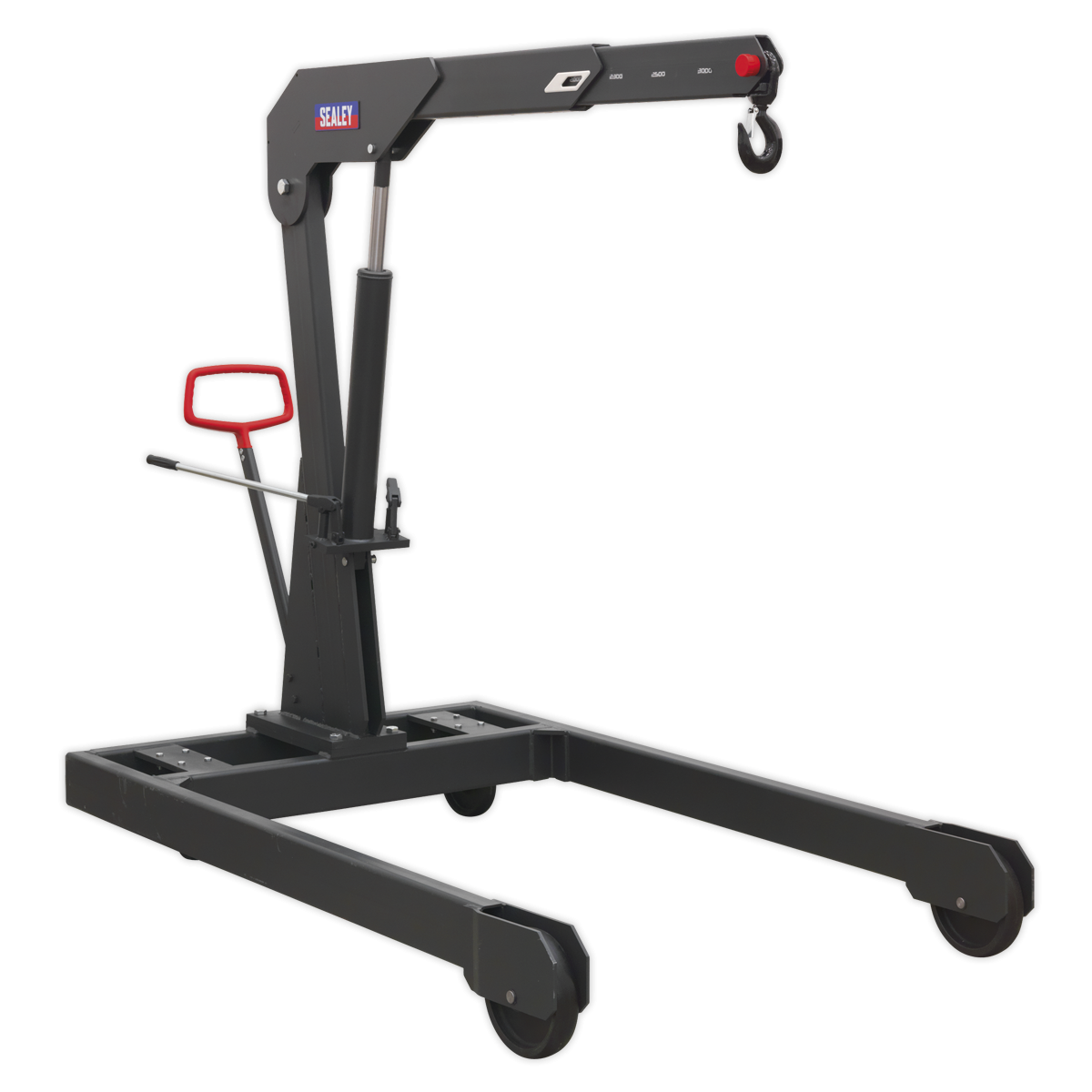

Sealey ToolsPremier Engine Crane 3 Tonne - Fixed PFC301

Professional 3 Tonne fixed crane with parallel legs, designed to accommodate a standard size pallet and features heavy-duty forged hook. Lowers rapidly with no-load, whilst providing smooth, controlled lowering under load conditions. Rear swivel wheels and handle make manoeuvring the crane a simple operation. Beam can be set in 4-positions, with a capacity of 2000kg at its full extension of 1870mm. Crane features two pumps one for slow, safe controlled lifting and a quick lift pump. Weighs 299kg and is suitable for workshop use.

Specifications

• Model No PFC301
• Brand: Premier
• Height Jib Down: 1930mm
• Height Legs Folded: n/a
• Height of Frame: 265mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 1430mm
• Length of Jib Position 2: 1580mm
• Length of Jib Position 3: 1730mm
• Length of Jib Position 4: 1870mm
• Length of Jib Position 5: n/a
• Length: 2400mm
• Lifting Capacity in Position 1: 3000kg
• Lifting Capacity in Position 2: 2500kg
• Lifting Capacity in Position 3: 2300kg
• Lifting Capacity in Position 4: 2000kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 2720mm
• Max. Lift Ht at Jib Position 2: 2850mm
• Max. Lift Ht at Jib Position 3: 2950mm
• Max. Lift Ht at Jib Position 4: 3050mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 299kg
• Rear Width: 1275mm
• Width Front Frame: 1300mm
• Width Inside Front Frame: 1100mm
