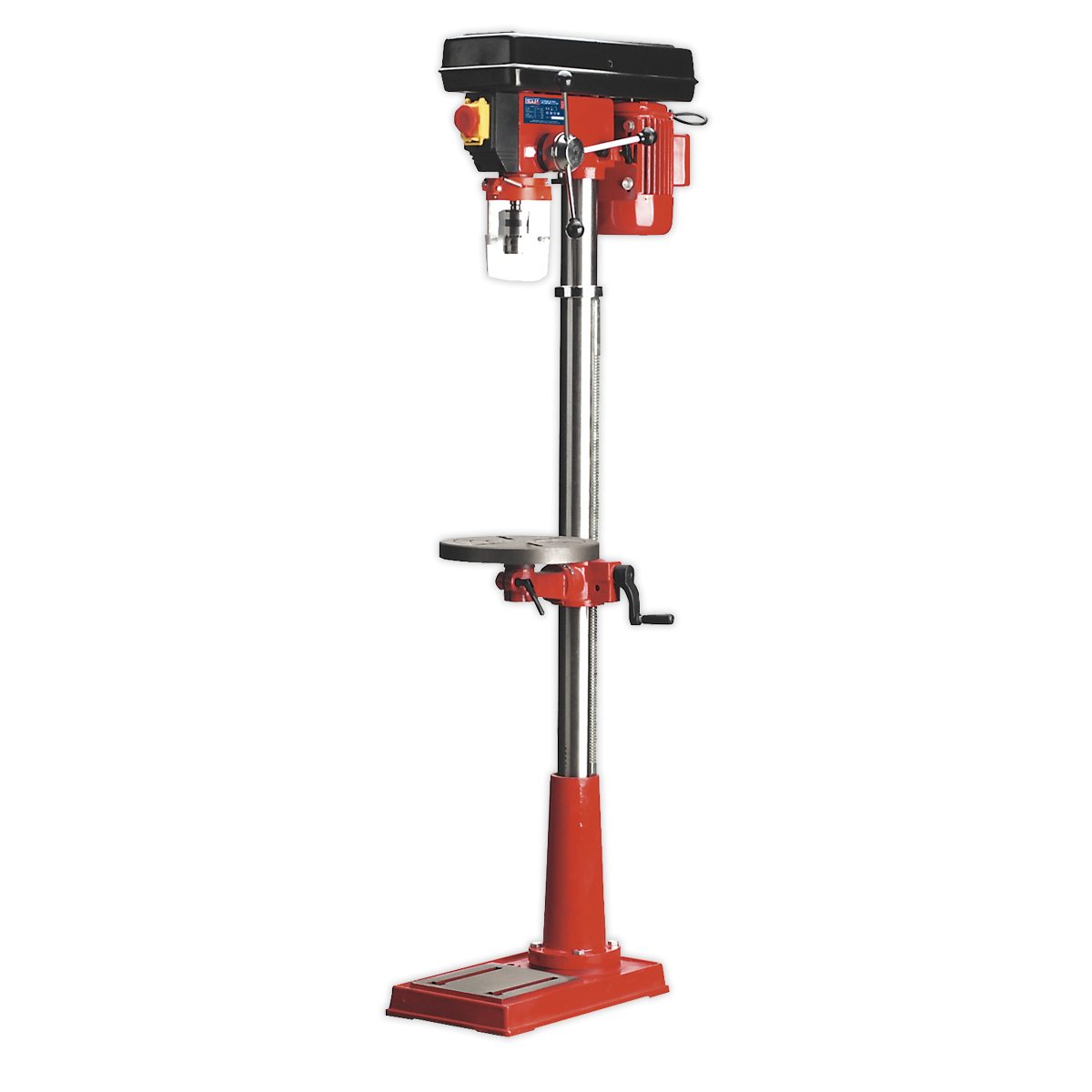

- Pillar Drill Floor 12-Speed 1500mm Height 370W/230V GDM140F
Sealey ToolsPillar Drill Floor 12-Speed 1500mm Height 370W/230V GDM140F
RRP £587.94£361.38(£301.15 ex. VAT)Save: £226.56
In Stock
Product Description
Product Reviews
For a small premium over the cost of a bench drill, you can avoid tying up valuable bench space. This floor standing drill has adjustable tilting table and rise and fall height adjustment by rack and pinion. Fully CE certificated and approved for use in educational establishments and the industrial workplace. Fitted with no-load voltage switch and locking cover to prevent accidental starting. Mortise attachment available, order Model No. MA10.
Specifications
- Model No GDM140F
- Base Size: 420 x 250mm
- Brand: Sealey
- Collar Diameter: Ø60mm
- Column Diameter: Ø60mm
- Drilling Capacity (Chuck Size): Ø16mm
- Maximum Distance Spindle to Base: 1200mm
- Maximum Distance Spindle to Table: 810mm
- Motor Power: 370W
- Nett Weight: 41.0kg
- Number of Speeds: 12
- Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 1500mm
- Speed Range: 210-2580rpm
- Spindle Centre to Column: 127mm
- Spindle Nose Taper: MT2
- Spindle Travel: 60mm
- Supply: 230V
- Swing: 254mm
- Working Base Surface Size: 190 x 215mm
- Working Table Surface Size: Ø248mm
For a small premium over the cost of a bench drill, you can avoid tying up valuable bench space. This floor standing drill has adjustable tilting table and rise and fall height adjustment by rack and pinion. Fully CE certificated and approved for use in educational establishments and the industrial workplace. Fitted with no-load voltage switch and locking cover to prevent accidental starting. Mortise attachment available, order Model No. MA10.
Specifications
- Model No GDM140F
- Base Size: 420 x 250mm
- Brand: Sealey
- Collar Diameter: Ø60mm
- Column Diameter: Ø60mm
- Drilling Capacity (Chuck Size): Ø16mm
- Maximum Distance Spindle to Base: 1200mm
- Maximum Distance Spindle to Table: 810mm
- Motor Power: 370W
- Nett Weight: 41.0kg
- Number of Speeds: 12
- Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
- Overall Height: 1500mm
- Speed Range: 210-2580rpm
- Spindle Centre to Column: 127mm
- Spindle Nose Taper: MT2
- Spindle Travel: 60mm
- Supply: 230V
- Swing: 254mm
- Working Base Surface Size: 190 x 215mm
- Working Table Surface Size: Ø248mm
