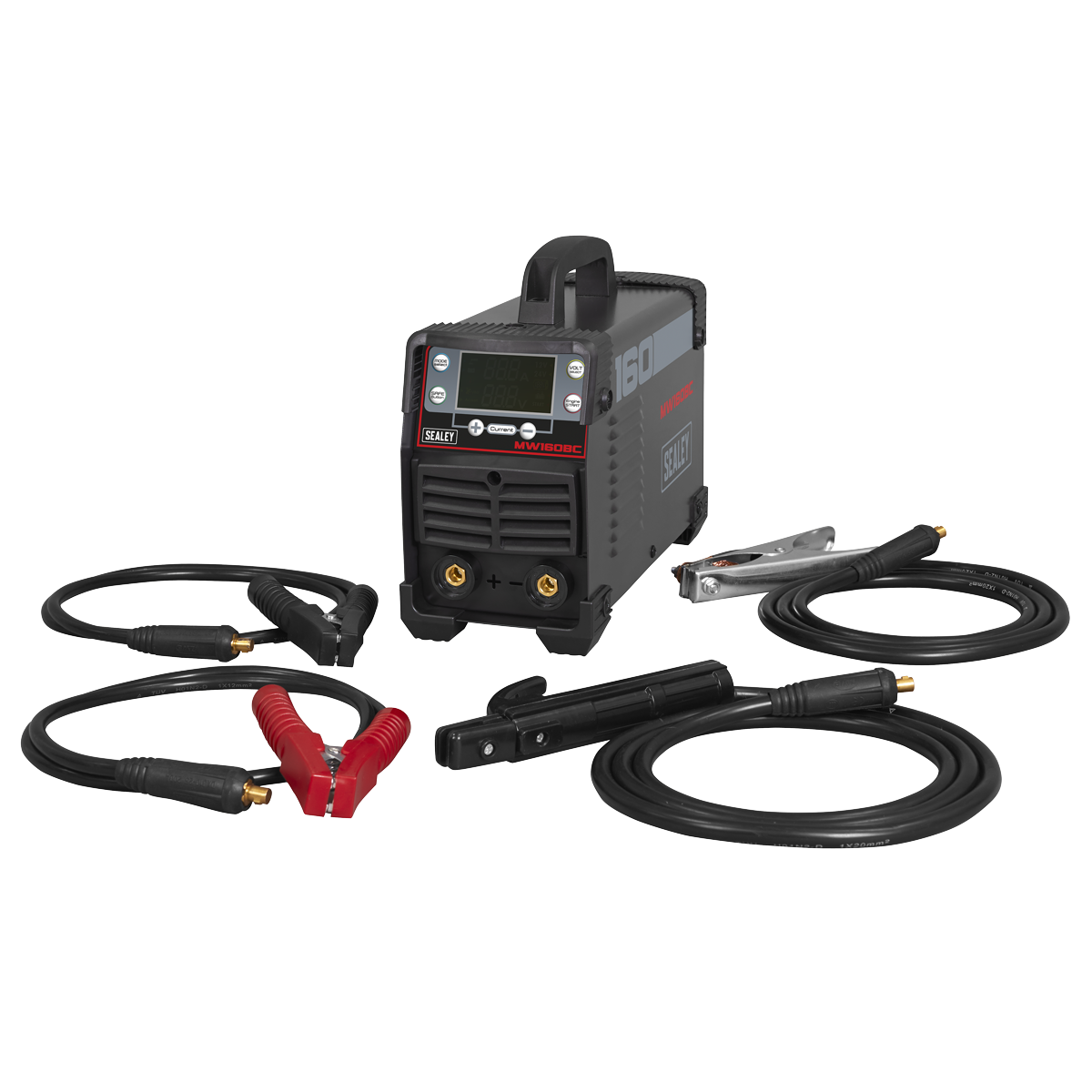

Sealey ToolsMMA Inverter Welder & Battery Charger/Starter 200A MW160BC

3-in-1 IGBT Inverter that allows the user to MMA weld, charge batteries and jump start vehicles with flat batteries. Three functions include a 160A MMA welder, 30A battery charger and a 200A start function. Unit can MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm. Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. Ultra-compact and lightweight unit weighing just 5kg approx. Suitable for charging VRLA (Lead Acid), GEL, AGM/EFB and Leisure Batteries on 12 and 24V systems. Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, 1m 200A charging clamps and 1.8m Power cable.

Specifications

• Model No MW160BC
• Brand: Sealey
• Nett Weight: 4kg
• MMA Ouput: 20-160A
• Duty Cycle: 25% @ 160A, 60% @ 124A, 100% @ 80A.
• Start Peak: 200A
• Charge Peak: 30A
• Cable & Clamp legnth: 1m
• Max Size Battery (Ah) Full Charge in 12hrs 400Ah
• Supply: 230V
• Plug Type: Bare Wire
• Battery Type: VRLA ( Sealed Lead Acid) , GEL, AGM/EFB, Leisure (Deep Discharge)
• IP Rating: IP21
• System: 12/24V
