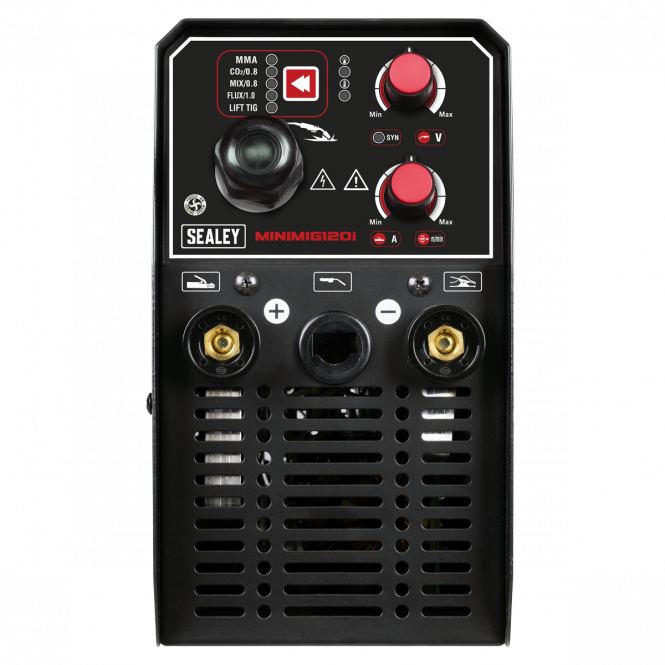

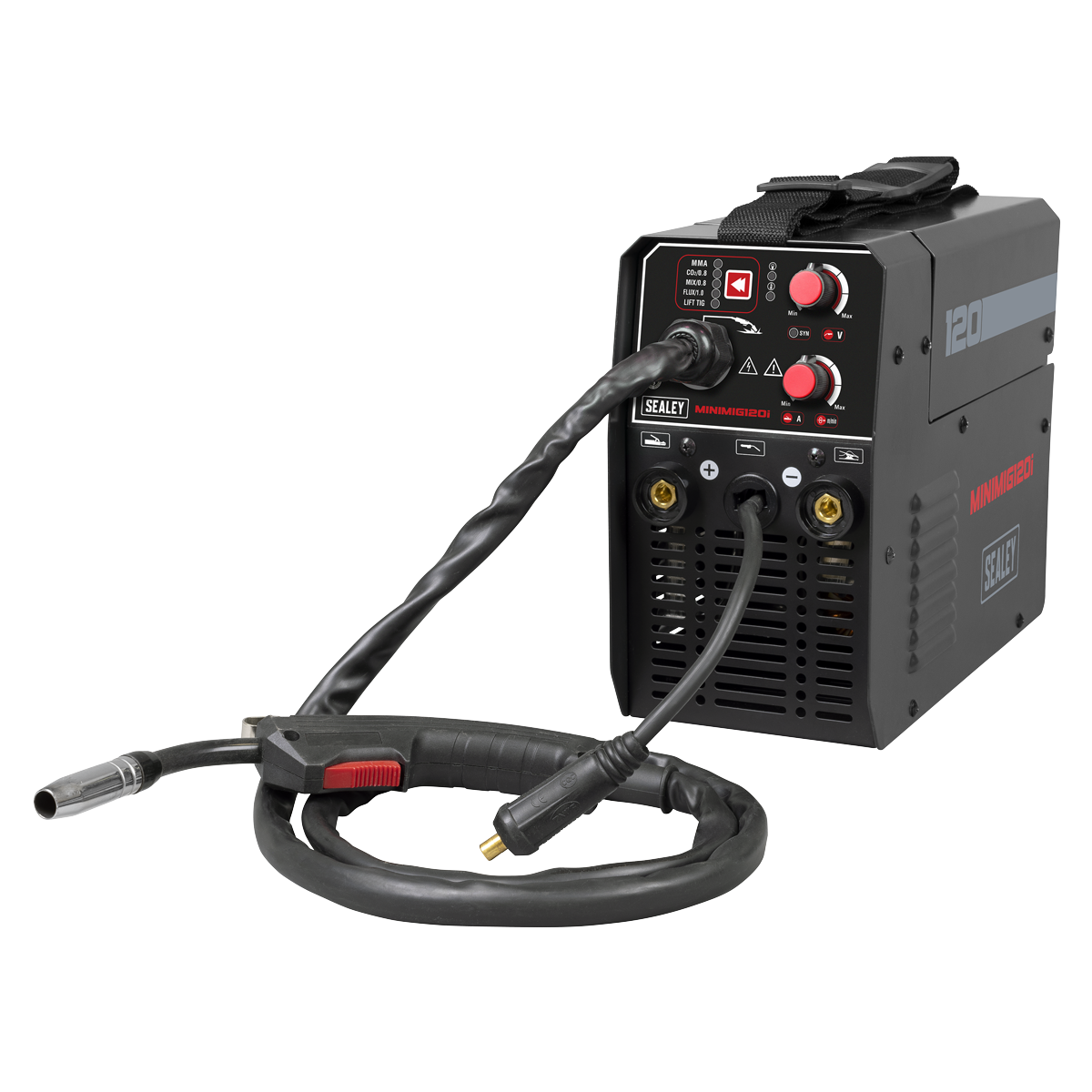

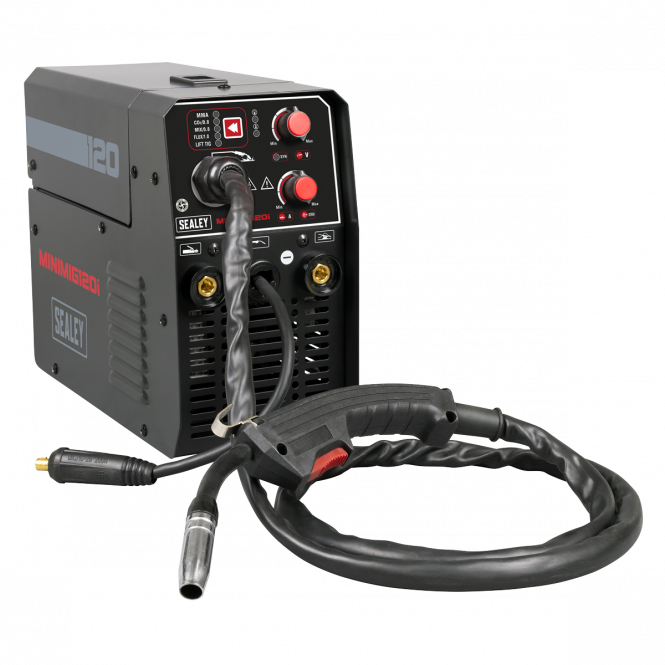

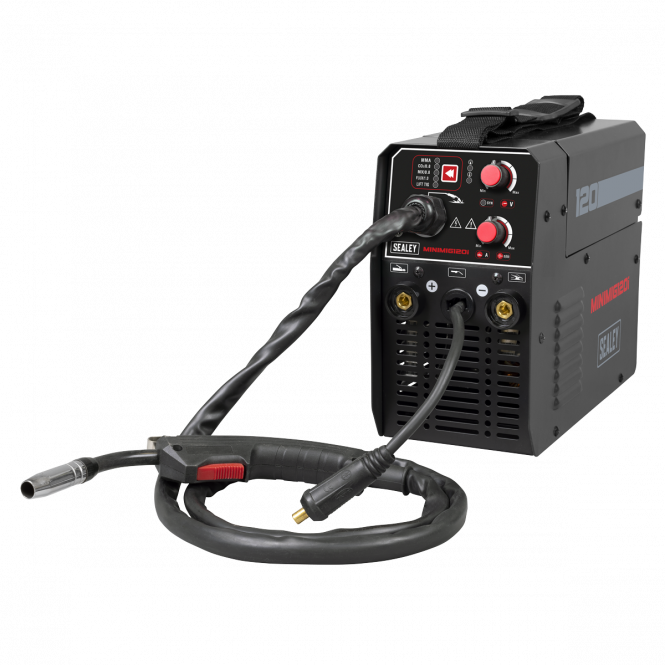

Sealey ToolsMIG/TIG & MMA (ARC/STICK) Inverter Welder 120A 230V MINIMIG120i

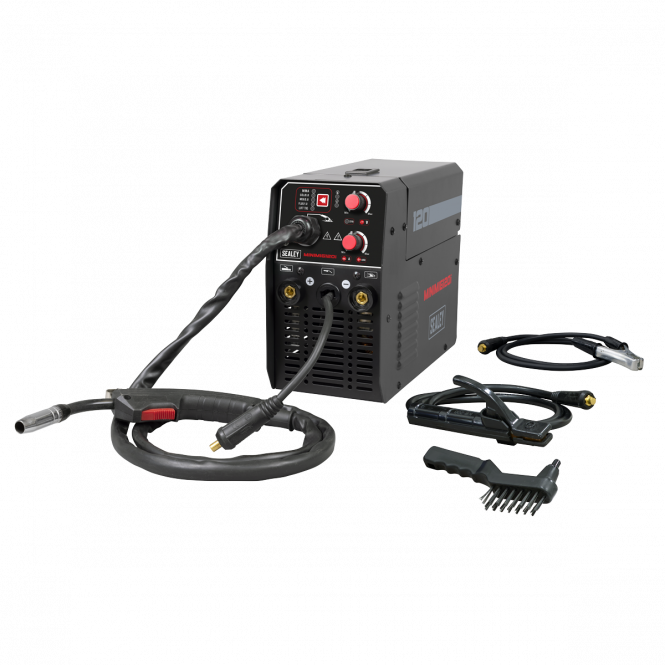

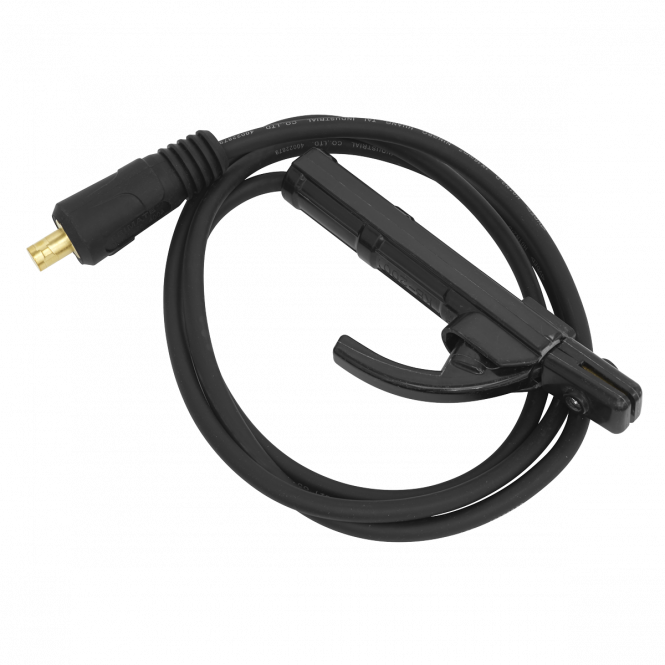

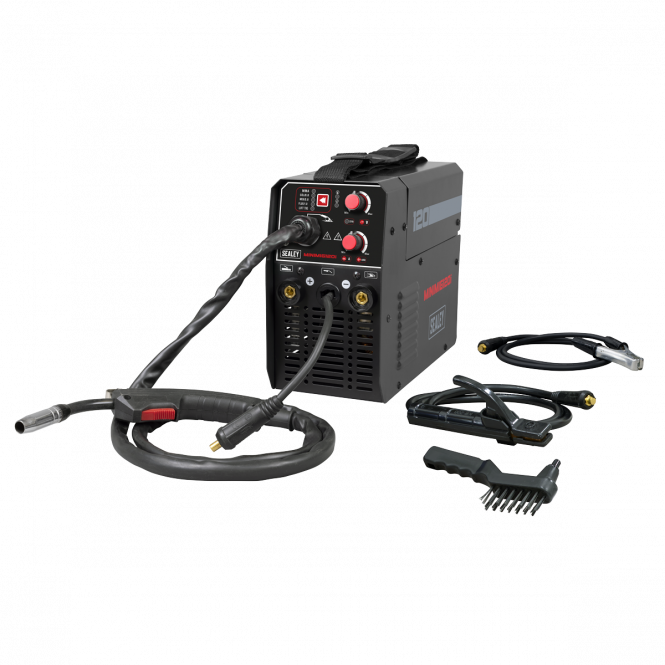

IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 120A. Multi-functional welder bringing together MIG/TIG and MMA application all into one compact unit ideal for workshops, garages, bodyshops and mobile technicians. Ultra-compact and lightweight weighing just 6.9kg and supplied with handy carry strap making this unit highly portable allowing the welder to be taken to the job at hand. Featuring hot start, anti-stick, forced air cooling and thermal cut out protection. Unit can MIG weld using 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire, MMA/ARC weld Ø1.6 up to Ø3.2mm electrode. Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.

Specifications

• Model No MINIMIG120i
• Brand: Sealey
• Nett Weight: 6.9kg
• Welding Current: 10-120A
• Duty Cycle MIG: 60% @ 120A, 100% @ 76A
• Duty Cycle MMA/ARC: 60% @ 120A, 100% @ 76A
• Duty Cycle TIG: 60% @ 120A, 100% @ 76A
• Wire Capacity: 1kg Ø0.8/0.9/1.0mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire,
• Electrode Capacity: 1.6-3.2mm
• Absorbed Power: 4.4kW
• Supply: 230V 16A*
• Insualtion Class: H
• IP Rating: IP21S
• Note* To achieve maximum power a 16A supply may be required.
