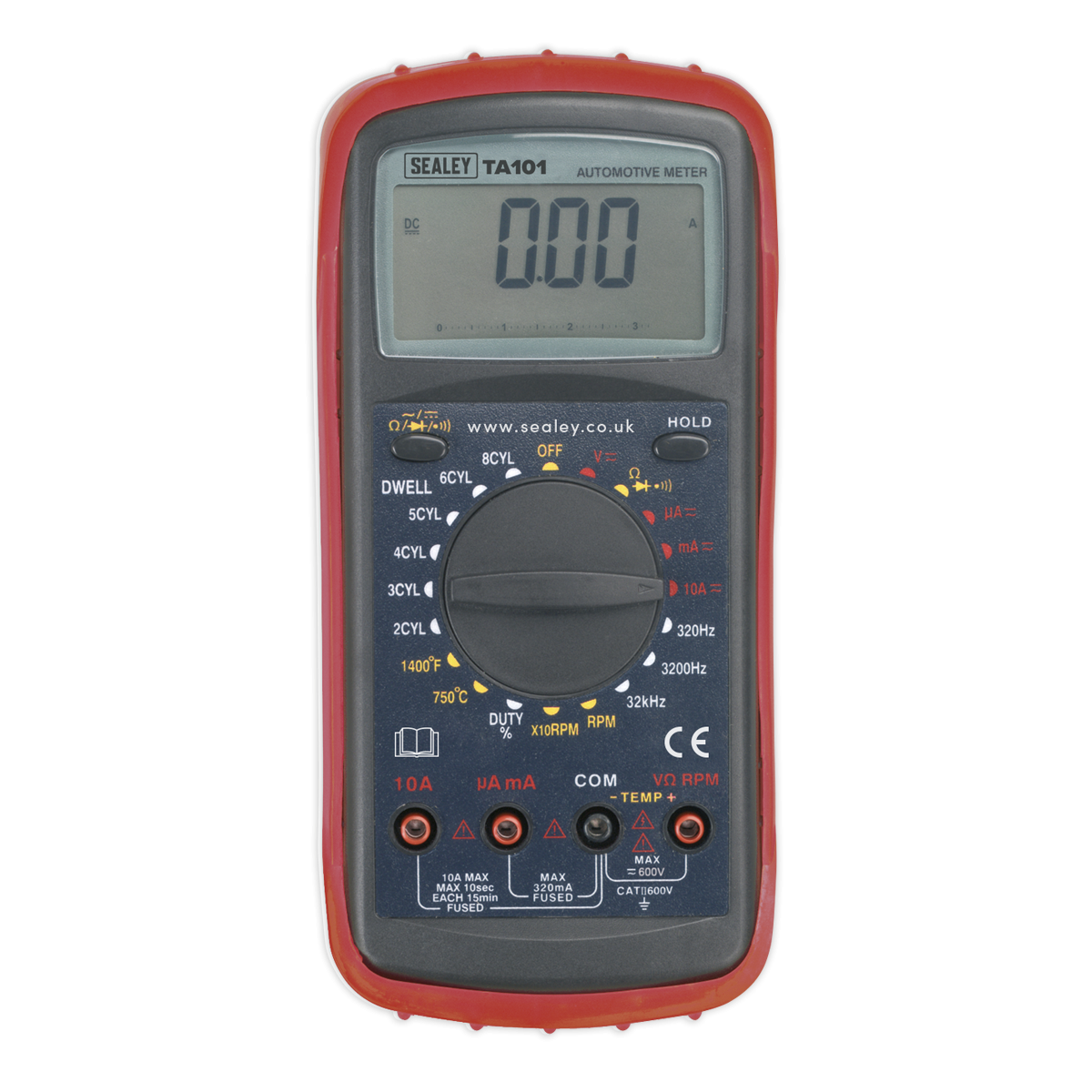

- Digital Automotive Analyser 12-Function TA101
Sealey ToolsDigital Automotive Analyser 12-Function TA101
RRP £94.74£79.74(£66.45 ex. VAT)Save: £15.00
In Stock
Product Description
Product Reviews
Durable case and integral stand suitable for the toughest workshop conditions. Large, high-contrast LCD display with 18mm high digital read-out and analogue bar graph. Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions. Bar graph simplifies lambda sensor testing. Supplied with capped test probes and K-type thermocouple.
Specifications
- Model No TA101
- Brand: Sealey
- Nett Weight: 400g
- Tach (rpm): 0-3260 (x1)rpm, 0-3260(x10)rpm
- Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
- AC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
- DC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
- AC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
- DC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
- Capacitance: No
- Frequency: 320Hz, 3200Hz, 32kHz (Manual Range)
- Duty Cycle: 0.1-99.9%
- Pulse Width: No
- Resistance: 326Ω, 3.26kΩ, 32.6kΩ, 326kΩ, 3.26MΩ, 32.6MΩ (Auto-Ranging)
- Continuity: <50Ω
- Temperature: -20 to +750°C/-4 to +1400°F
- IR Temperature: No
- Diode Check: Yes (Typical Test Current 1mA)
- Transistor Test: No
- Back Light: No
- Bar Graph Display: Yes
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: No
- PC Interface: No
- Digits Height: 18mm
- Auto-Power-Off: Yes
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 200 x 93 x 50mm
- Weight: 400g
Durable case and integral stand suitable for the toughest workshop conditions. Large, high-contrast LCD display with 18mm high digital read-out and analogue bar graph. Includes auto-ranging, data-hold, auto-polarity, auto-power-off and low battery display functions. Bar graph simplifies lambda sensor testing. Supplied with capped test probes and K-type thermocouple.
Specifications
- Model No TA101
- Brand: Sealey
- Nett Weight: 400g
- Tach (rpm): 0-3260 (x1)rpm, 0-3260(x10)rpm
- Dwell: 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
- AC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
- DC Voltage: 326mV, 3.26V, 32.6V, 326V, 600V (Auto-Ranging)
- AC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
- DC Current: 326µA, 3260µA, 32.6mA, 326mA, 10A (Auto-Ranging for µA & mA)
- Capacitance: No
- Frequency: 320Hz, 3200Hz, 32kHz (Manual Range)
- Duty Cycle: 0.1-99.9%
- Pulse Width: No
- Resistance: 326Ω, 3.26kΩ, 32.6kΩ, 326kΩ, 3.26MΩ, 32.6MΩ (Auto-Ranging)
- Continuity: <50Ω
- Temperature: -20 to +750°C/-4 to +1400°F
- IR Temperature: No
- Diode Check: Yes (Typical Test Current 1mA)
- Transistor Test: No
- Back Light: No
- Bar Graph Display: Yes
- Display Hold: Yes
- Auto-Ranging: Yes
- Inductive Coupler: No
- PC Interface: No
- Digits Height: 18mm
- Auto-Power-Off: Yes
- Low Battery Indicator: Yes
- Batteries (supplied): 9V (PP3)
- Hi-Impact Case: Yes
- Size (L x W x D): 200 x 93 x 50mm
- Weight: 400g
