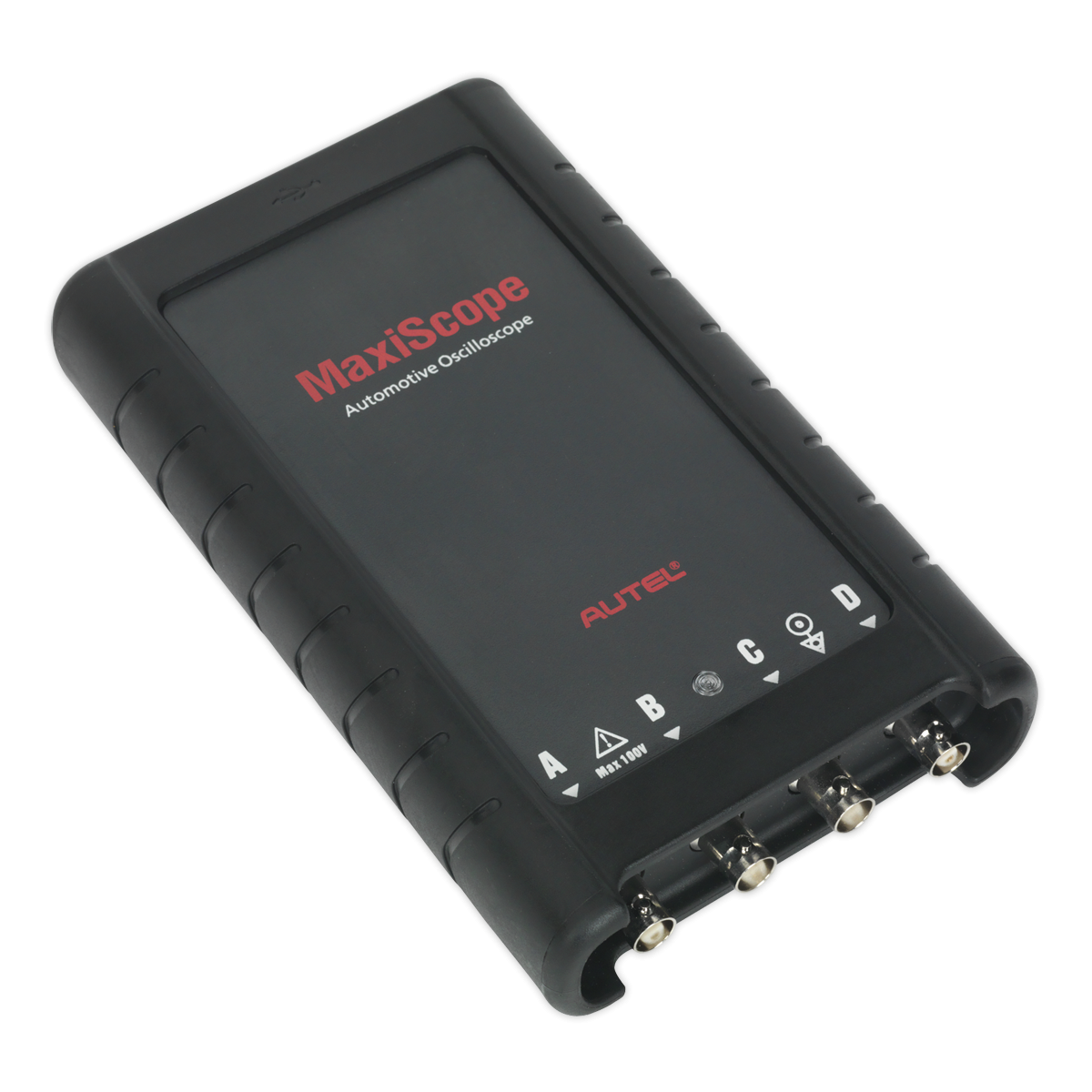

- Autel MaxiScope - Automotive Oscilloscope
Product Description
Product Reviews
4-Channel automotive oscilloscope suitable for professional applications. Works in conjunction with MaxiSYS® Tablets*, Model No.MS908, to provide a powerful diagnostic tool. Powered directly from a USB port, with no need for batteries or power leads, making it versatile and portable. The 4-channel function allows multiple components to be compared simultaneously. The scope is supplied with a wide selection of automotive type test leads, connectors and probes.
*Not suitable for Model No MS906.
Specifications
- Model No MP408
- Brand: Autel
- Nett Weight: 1.45kg
- Accessories (supplied): 1.5m USB Cable, 3m Screened Test Lead (x4), Secondary Ignition Pick-up, 2-Pin Breakout Lead, Attenuators 20:1 (x2), Large Crocodile Clip Set (Pair), Small Crocodile Clip Set (Pair), Acupuncture Probe Set, Multimeter Probes (Pair)
- Input:
- Maximum Sample Rate: 80MS/s (Single Channel), 20MS/s (Multiple Channels)
- Bandwidth: 20MHz
- Input Range: 50mV - 100V (11 ranges)
- Coupling: AC/DC
- Impedance: 1MΩ
- DC Accuracy: 1%
- Input Protection: 200V
- Timebase Range: 100ns/div - 1000s/div
- Buffer Size: 32M shared on active channels
- Sensitivity: 10mV/div - 20V/div
- Trigger Type: Rising Edge, Falling Edge
- Trigger Mode: Auto, Repeat, Single, None
- Advanced Features: Math Channels, Measurements
- Interface: USB 2.0
- Operating System: Windows XP (SP3), Windows Vista, 7, 8 (32-bit or 64-bit)
- Size: 190 x 115 x 38mm
4-Channel automotive oscilloscope suitable for professional applications. Works in conjunction with MaxiSYS® Tablets*, Model No.MS908, to provide a powerful diagnostic tool. Powered directly from a USB port, with no need for batteries or power leads, making it versatile and portable. The 4-channel function allows multiple components to be compared simultaneously. The scope is supplied with a wide selection of automotive type test leads, connectors and probes.
*Not suitable for Model No MS906.
Specifications
- Model No MP408
- Brand: Autel
- Nett Weight: 1.45kg
- Accessories (supplied): 1.5m USB Cable, 3m Screened Test Lead (x4), Secondary Ignition Pick-up, 2-Pin Breakout Lead, Attenuators 20:1 (x2), Large Crocodile Clip Set (Pair), Small Crocodile Clip Set (Pair), Acupuncture Probe Set, Multimeter Probes (Pair)
- Input:
- Maximum Sample Rate: 80MS/s (Single Channel), 20MS/s (Multiple Channels)
- Bandwidth: 20MHz
- Input Range: 50mV - 100V (11 ranges)
- Coupling: AC/DC
- Impedance: 1MΩ
- DC Accuracy: 1%
- Input Protection: 200V
- Timebase Range: 100ns/div - 1000s/div
- Buffer Size: 32M shared on active channels
- Sensitivity: 10mV/div - 20V/div
- Trigger Type: Rising Edge, Falling Edge
- Trigger Mode: Auto, Repeat, Single, None
- Advanced Features: Math Channels, Measurements
- Interface: USB 2.0
- Operating System: Windows XP (SP3), Windows Vista, 7, 8 (32-bit or 64-bit)
- Size: 190 x 115 x 38mm
