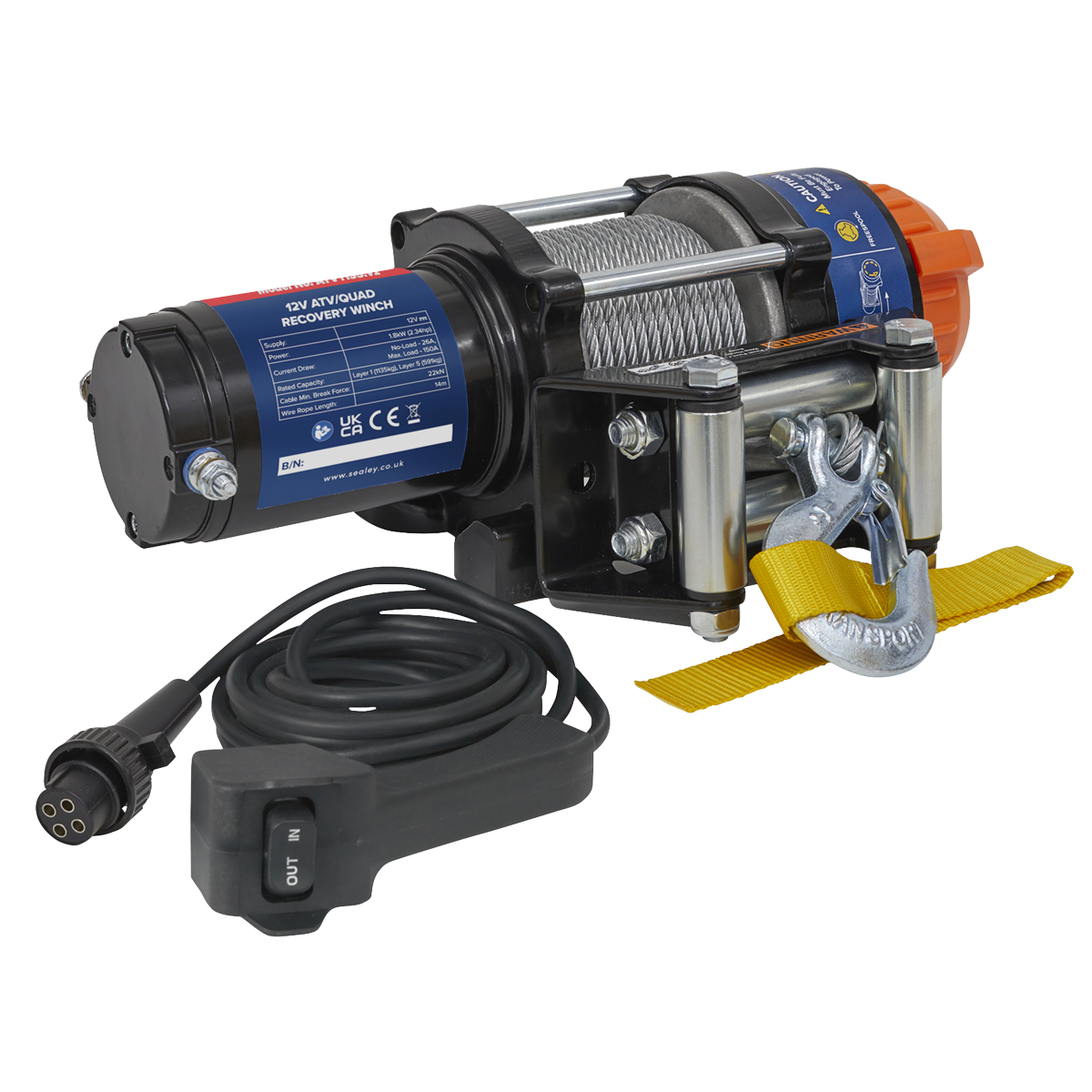

- ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V ATV1135
Sealey ToolsATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V ATV1135
RRP £287.94£234.46(£195.38 ex. VAT)Save: £53.48
In Stock
Product Description
Product Reviews
Suitable for ATV & quadbike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Specifications
- Model No ATV1135
- Brand: Sealey
- Cable Minimum Brake Force: 22kN
- Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
- Current Draw: No-Load - 26A, Maximum Load - 150A
- Gear Ratio: 180:1
- Line Pull*: 1135kg(2500lb)
- Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
- Motor Power: 1.8kW(2.34hp)
- Nett Weight: 11.8kg
- Note: *Performance quoted at first layer of cable on drum
- Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
- Supply: 12V
- Wire Rope Diameter: 4.8mm
- Wire Rope Length: 14m
Suitable for ATV & quadbike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Specifications
- Model No ATV1135
- Brand: Sealey
- Cable Minimum Brake Force: 22kN
- Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
- Current Draw: No-Load - 26A, Maximum Load - 150A
- Gear Ratio: 180:1
- Line Pull*: 1135kg(2500lb)
- Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
- Motor Power: 1.8kW(2.34hp)
- Nett Weight: 11.8kg
- Note: *Performance quoted at first layer of cable on drum
- Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
- Supply: 12V
- Wire Rope Diameter: 4.8mm
- Wire Rope Length: 14m
